Struggling with precision in bronze machining? Errors can waste time and money, delaying projects. This guide offers expert solutions to perfect CNC machining bronze, ensuring quality and efficiency—read on!
CNC machining bronze uses computer-controlled tools to shape bronze, an alloy of copper and tin, into precise parts. Valued for its machinability, corrosion resistance, and durability, it’s ideal for industries like aerospace and marine.
Keep reading to master every step of bronze CNC machining.

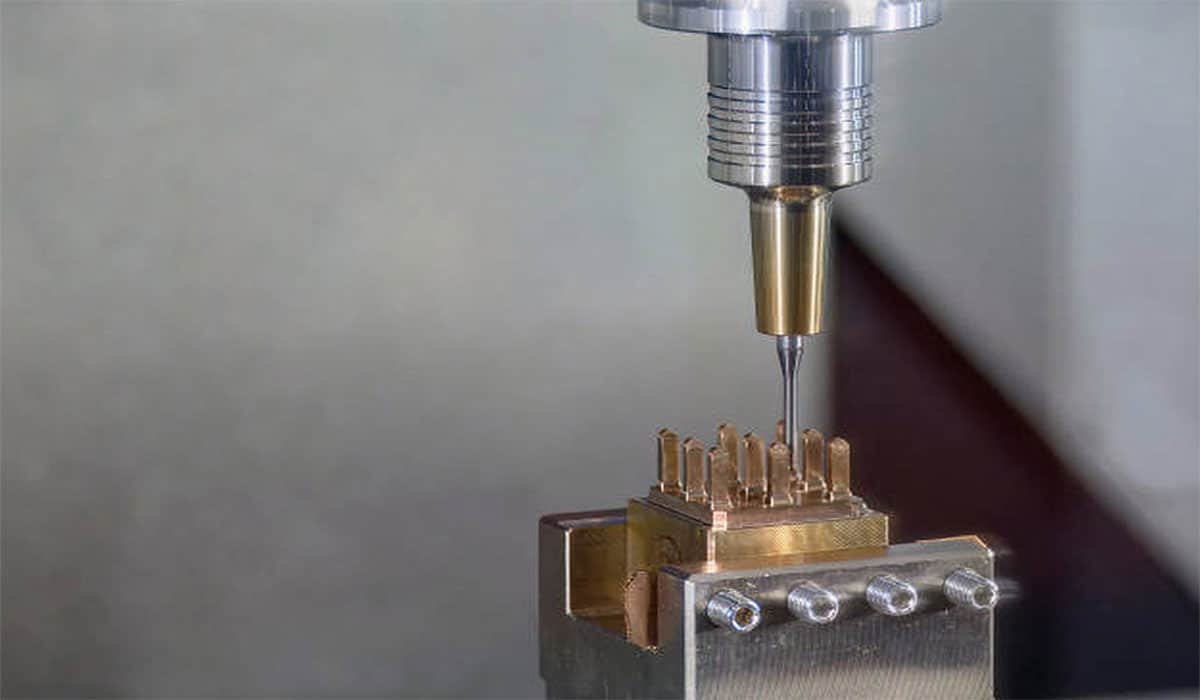

What is CNC Machining Bronze?
CNC machining bronze refers to the process of using computer numerical control (CNC) machines—such as mills and lathes—to remove material from bronze workpieces to achieve precise dimensions and surface finishes. Bronze, an alloy primarily of copper and tin (with possible additions like phosphorus, aluminum, or silicon), offers excellent strength, wear resistance, and corrosion resistance, making it a popular choice for components in marine, electrical, and bearing applications.
In a typical bronze CNC machining workflow, a solid bronze billet or bar is secured in the machine’s chuck or vise. The CNC program—a digital code generated from a CAD (computer-aided design) model—directs cutting tools (end mills, drills, inserts) to remove material, following precisely mapped toolpaths incrementally. Modern CAM (computer-aided manufacturing) software optimizes these toolpaths to minimize machining time while ensuring surface quality and accuracy, generating G‑code that instructs the CNC machine on feed rates, spindle speeds, and tool changes.
Key advantages of CNC machining bronze include:
- High Precision & Repeatability: CNC controls achieve tolerances as tight as ±0.005 mm.
- Complex Geometries: Multi-axis capabilities allow for intricate internal and external shapes.
- Scalability: From prototype to large‑volume production, CNC machining supports batch runs efficiently.
- Material Utilization: Optimized toolpaths reduce waste, an important factor given bronze’s cost.
Commonly machined bronze alloys include phosphor bronze (C51000), aluminum bronze (C95400), and silicon bronze (C65500). Each offers unique machinability characteristics—phosphor bronze excels in wear and electrical performance, while aluminum bronze delivers superior strength and corrosion resistance. Proper alloy selection, tooling, and process parameters are crucial to maximize tool life and part quality in bronze CNC machining.
Historical Context of Bronze in Machining
Bronze has been central to human innovation since at least 3300 BCE, marking the Bronze Age’s advent when artisans discovered that the copper‑tin alloy vastly outperformed pure copper in hardness and durability. Early craftsmen cast bronze into simple tools, weapons, and ornamental items. Machining as we know it—subtracting material via cutting tools—did not emerge until the Industrial Revolution, when mechanized lathes and milling machines appeared in the late 18th century.
In the 1800s, bronze parts were hand‑machined on belt‑driven lathes, requiring skilled operators to guide cutting tools manually. Surface finishes were coarse, and tolerances hovered around ±0.1 mm. The 20th century brought numerical control (NC) machines, using punched tapes to automate tool motions. By the 1970s and ’80s, NC evolved into modern CNC: digital controls, computer‑aided design (CAD), and computer‑aided manufacturing (CAM) enabled far greater precision, speed, and complexity.
Bronze components have since been critical in industries such as:
- Marine: Ship propellers, rudder bearings, and valve components, capitalizing on bronze’s corrosion resistance.
- Electrical & Electronics: Connectors and bushings, leveraging bronze’s conductivity and strength.
- Automotive & Aerospace: Bearings and gears, where wear resistance is vital.
Over centuries, machining bronze transitioned from slow, labor‑intensive craftsmanship to highly automated CNC processes, continually improving tolerances, consistency, and production capacity. Today’s precision CNC bronze machining supports global supply chains, enabling customized, small‑batch runs alongside high‑volume manufacturing with unparalleled quality control.
How is Bronze Machined? Detailed Step-by-Step Guide on the Machining Process
Material Selection & Inspection
- Select the appropriate bronze alloy—phosphor, aluminum, or silicon bronze—based on strength, wear, and corrosion requirements. Inspect raw billets for surface defects, inclusions, or cracks that could impact machining.
CAD/CAM Programming
-
- Import the 3D CAD model of the part into CAM software.
- Define stock dimensions, work offsets, and tool library (end mills, drills, threading taps).
- Generate roughing toolpaths (high‑feed, high‑stepdown) to remove bulk material, then finishing toolpaths for surface quality (fine stepovers, slower feeds).
- Simulate the machining sequence to detect collisions and optimize cycle times.
- Post‑process to export G‑code tailored to the CNC machine’s controller.
Machine Setup
-
- Install chosen cutting tool in the spindle—typically carbide end mills or PVD‑coated inserts optimized for bronze’s ductility.
- Secure bronze stock in a precision chuck or vice, ensuring alignment to within ±0.01 mm.
- Zero the machine’s axes (X, Y, Z) using a touch probe or edge finder on the workpiece surface.
- Load tooling offsets and verify tool lengths in the controller.
Rough Machining
-
- Execute roughing cycles: aggressive cut depths (up to 2 mm per pass) and high feed rates (e.g., 500 mm/min) to clear material quickly.
- Use flood coolant to manage chip evacuation and tool temperature, preventing built‑up edge.
- Periodically pause to inspect stock and confirm dimensions.
Semi‑Finishing & Finishing
-
- Switch to finishing tools for light cuts (0.1–0.3 mm stepovers) at slower feeds (100–200 mm/min) to achieve a surface finish of Ra ≤0.8 µm.
- Utilize high‑speed spindle speeds (6,000–12,000 RPM) with minimal tool pressure to reduce chatter and tool wear.
- Inspect surface finish using a profilometer and measure critical dimensions with calipers or CMM.
Secondary Operations
-
- Deburr edges manually or with media blasting.
- Drill and tap threaded holes as specified, using bronze‑specific tapping oils.
- Polish or brush surfaces if required for aesthetic or functional finishes.
Quality Control & Packaging
-
- Conduct final inspection: dimensional checks, surface finish validation, and hardness tests if specified.
- Clean parts to remove residual coolant and chips.
- Package in anti‑corrosion paper and protective foam for shipment.
By following each detailed step—material prep, programming, setup, roughing, finishing, and QC—you ensure precision cnc machining bronze parts that meet stringent tolerances and performance standards.
What are the Types of Bronze Available for CNC Machining?
Bronze alloys vary in composition to tailor properties like strength, machinability, and corrosion resistance. Key types:
- Phosphor Bronze (C51000/C51200/C52100):
- Composition: 90–95% copper, 5–10% tin, up to 0.35% phosphorus.
- Properties: Excellent wear resistance, fatigue strength, and electrical conductivity.
- Machinability: Moderate (40–60% compared to brass). Preferred for electrical connectors and spring components.
- Aluminum Bronze (C95400/C95500):
- Composition: 78–84% copper, 9–11% aluminum, plus iron, nickel.
- Properties: Superior strength, toughness, and corrosion resistance, especially in marine environments.
- Machinability: Challenging (30–50%), requires rigid setups and sharp carbide tooling. Ideal for propeller and pump parts.
- Silicon Bronze (C65500):
- Composition: ~96% copper, 3% silicon, 1% manganese.
- Properties: Good strength, weldability, and corrosion resistance.
- Machinability: Fair (60–70%), used in marine fittings and architectural hardware.
- Gunmetal (C86300):
- Composition: Copper, tin, zinc (~88/10/2 ratio).
- Properties: Balanced strength and machinability.
- Machinability: Good (70–80%), common for bearings and valve components.
- Nickel Aluminum Bronze (C63000/C63020):
- Composition: Copper, aluminum, nickel, iron.
- Properties: Exceptional corrosion resistance, high strength at elevated temperatures.
- Machinability: Poor (<30%), reserved for heavy‑duty marine and aerospace hardware.
Selecting the right bronze alloy is crucial: balancing machinability, mechanical performance, and environmental resistance ensures optimal outcomes in CNC bronze machining projects.
How to Finish Machined Bronze Surfaces?
- Mechanical Polishing: Use progressively finer abrasive stones or cloth wheels to bring the surface to a satin or mirror finish.
- Chemical Patination: Apply liver of sulfur or specialized patina gels to develop a uniform coloration or antique look.
- Electroplating: Nickel or chrome plating adds corrosion resistance and decorative appeal.
- Brushing: Soft wire brushes create linear textures, hiding minor tool marks.
- Clear Coating: Transparent lacquers or waxes seal the bronze, preventing oxidation and preserving shine.
Each finish should be chosen based on application needs—functional bearings may require minimal finishing to maintain dimension, while decorative parts benefit from polishing and patination.

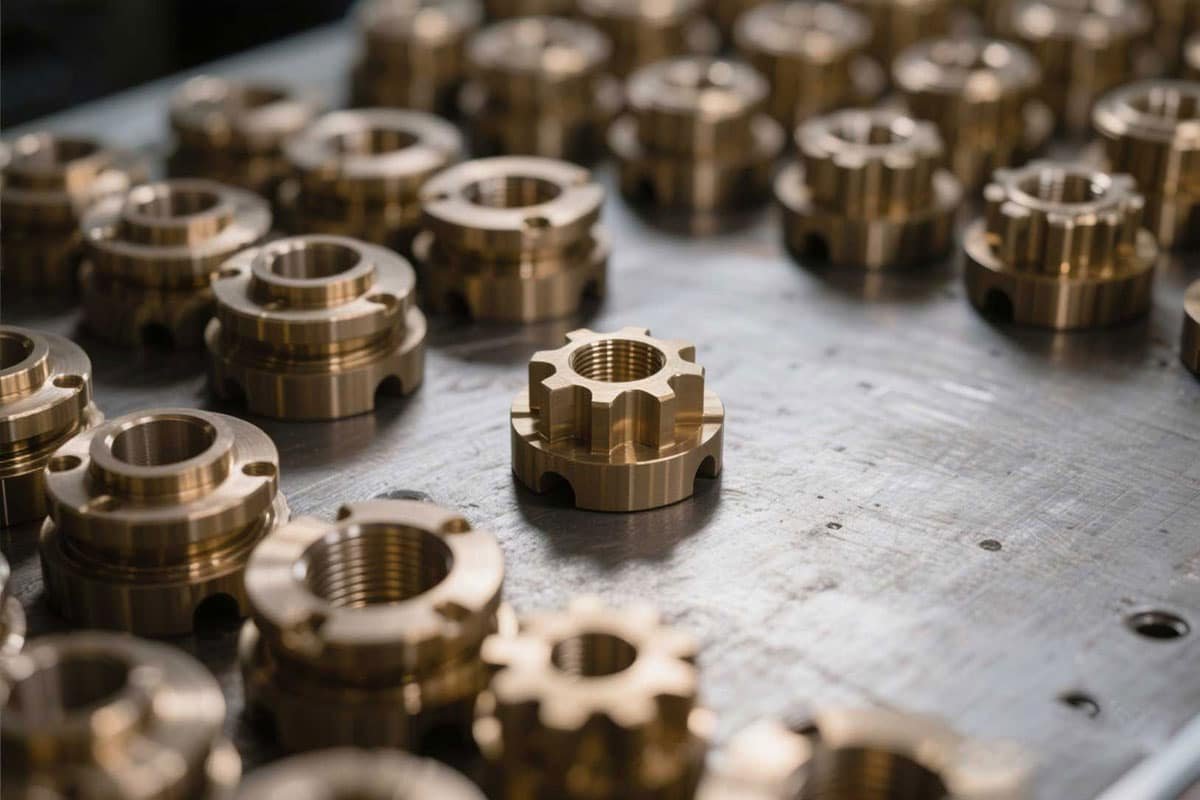

What are the Applications of Machined Bronze Parts?
Machined bronze components serve diverse industries:
- Marine & Offshore: Propellers, shaft seals, valve bodies, and pump components leverage bronze’s saltwater durability.
- Electrical & Electronics: Switchgear contacts, bushings, and connectors use bronze’s conductivity and wear resistance.
- Automotive & Aerospace: Bearings, bushings, and heat‑exchanger components exploit bronze’s low friction and thermal stability.
- Industrial Machinery: Gears, wear strips, and pump impellers benefit from bronze cutting toughness.
- Art & Architecture: Custom hardware, sculptures, and fittings showcase bronze machining’s precision and finish quality.
The demand for customized CNC machining bronze parts continues to grow, with factories in China and elsewhere delivering precision, cost‑effective solutions for global markets.
What are the Common Challenges in Bronze Machining?
- Built‑Up Edge (BUE): Bronze’s ductility can cause material welding to the tool, degrading surface finish. Mitigate with proper coolant and sharp tooling.
- Chatter & Vibration: Low stiffness setups amplify vibrations. Rigid fixturing and optimized toolpaths reduce chatter.
- Tool Wear: Abrasive inclusions in some bronze alloys accelerate carbide insert wear. Use PVD‑coated tools and monitor wear rates.
- Thermal Expansion: Bronze expands under heat; maintain consistent coolant flow and avoid excessive spindle speeds.
- Material Variability: Impurities or inconsistent alloy batches can alter machinability. Source from reputable China CNC machining bronze part factories with certified material tests.
Identifying and addressing these challenges is essential for the reliable production of high‑quality CNC bronze parts.
What are the Best Practices for Bronze Machining?
- Tool Selection: Use sharp carbide end mills with high rake angles and PVD coatings for extended life.
- Coolant Strategy: Flood coolant with anti‑built‑up edge additives to control temperature and flush chips.
- Speed & Feed Optimization: Moderate spindle speeds (5,000–10,000 RPM) and conservative feed rates to prevent work hardening.
- Fixturing: Rigid vices or vacuum fixtures reduce deflection; double‑clamp setups for long, slender parts.
- Process Monitoring: Implement in‑process tool‑breakage sensors and periodic dimensional inspections.
- Program Verification: Simulate every job in CAM and perform dry runs to catch collisions.
- Post‑Process Validation: Use coordinate measuring machines (CMM) and surface profilometers to verify tolerances and finishes.
Adhering to these best practices enables consistent, high‑precision production of CNC machining bronze parts.
What Defines Quality in CNC Bronze Parts?
Quality bronze components exhibit:
- Tight Tolerances: Dimensional accuracy within ±0.01–0.05 mm.
- Surface Finish: Ra ≤0.8 µm for critical sealing or bearing surfaces.
- Material Integrity: No cracks, inclusions, or delamination, verified by dye‑penetrant or ultrasonic testing.
- Mechanical Properties: Hardness and tensile strength meeting alloy specifications.
- Repeatability: Consistent part‑to‑part uniformity in batch runs.
Quality assurance involves incoming material certs, in‑process inspections, and final CMM reports, ensuring every bronze CNC part meets client expectations.
How to Select China CNC Bronze Parts Suppliers?
- Certifications: ISO 9001, IATF 16949, and material test reports for alloy traceability.
- Capabilities: Five‑axis machining, precision turning, and advanced finishing services.
- Experience: Proven track record in machining phosphor bronze, aluminum bronze, and gunmetal.
- Quality Control: On‑site CMM, surface roughness testers, and non‑destructive testing labs.
- Lead Times & Pricing: Transparent CNC machining bronze parts price lists and the ability to handle both prototypes and large volumes.
- Communication: English‑fluent project managers, clear quoting, and proactive job tracking.
- Factory Audits: Willingness to host video or on‑site audits, showcasing machine parks and QC procedures.
Selecting the right China CNC machining bronze part factory ensures you receive customized CNC machining bronze parts that match your technical and commercial requirements.
Conclusion
CNC machining bronze combines advanced milling, precise tooling, and rigorous quality control to produce durable, high‑precision components. By understanding alloy selection, machining processes, finishing techniques, and supplier evaluation, you can optimize every aspect of your bronze CNC projects.
Frequently Asked Questions (FAQs)
Q1: Is bronze harder to machine than aluminum?
A1: Yes. Bronze’s higher strength and toughness require more robust tooling and careful process control compared to aluminum.
Q2: What tolerances are achievable in bronze CNC parts?
A2: Typically ±0.01 mm to ±0.05 mm, depending on part geometry and machining center capability.
Q3: Can I polish bronze to a mirror finish?
A3: Absolutely—mechanical polishing with fine abrasives and buffing can achieve an Ra of 0.2 µm or better.
Q4: How does phosphor bronze differ from aluminum bronze?
A4: Phosphor bronze excels in wear resistance and electrical conductivity; aluminum bronze offers superior strength and corrosion resistance.
Q5: What is the typical lead time for CNC bronze parts?
A5: Depending on complexity, 1–3 weeks for prototypes and 2–6 weeks for larger volume orders.
